FlexiClean Vac
Introduction
Team work
Duration
Tools
The water vacuum cleaner is gaining popularity in China. We aim to design a product for the startup Future Cat, addressing the challenge of large-sized floor cleaning machines. The innovative design combines the "clean water tank" and "sewage tank," significantly reducing the overall machine size. Additionally, a detachable handheld vacuum cleaner enhances versatility, providing more usage possibilities. Feasibility was confirmed through 3D printing and creating a 1:1 model, and the design project involved collaboration with enterprises.
Project management
Team Collaboration
Product Design
Prototype Fabrication
9/8/2023 - 12/31/2023
Solidworks
Rhino
Keyshot
3D print

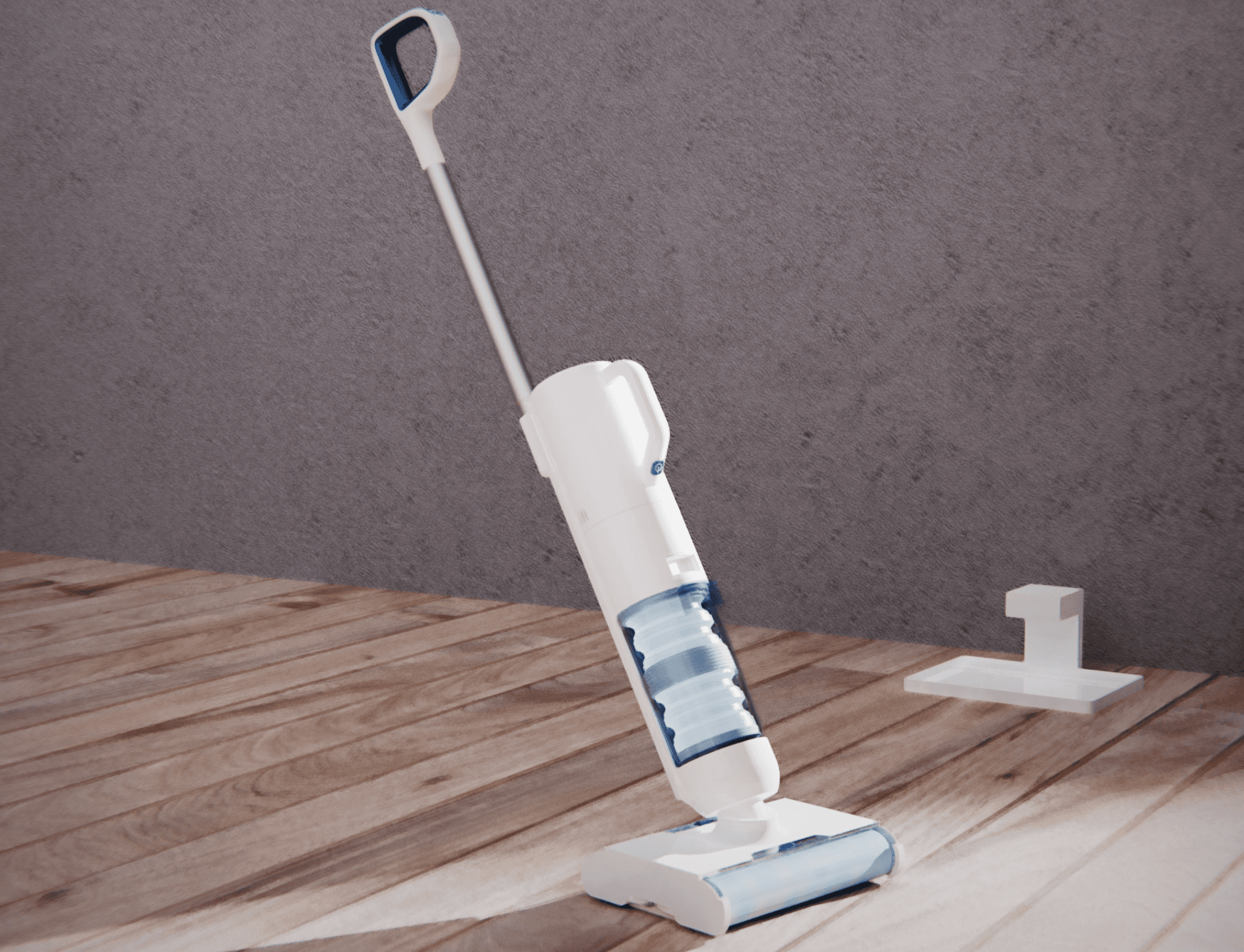

Story Board: Let us use it do cleaning
FlexiClean Vac
Introduction
Team work
Duration
Tools
The water vacuum cleaner is gaining popularity in China. We aim to design a product for the startup Future Cat, addressing the challenge of large-sized floor cleaning machines. The innovative design combines the "clean water tank" and "sewage tank," significantly reducing the overall machine size. Additionally, a detachable handheld vacuum cleaner enhances versatility, providing more usage possibilities. Feasibility was confirmed through 3D printing and creating a 1:1 model, and the design project involved collaboration with enterprises.
Project management
Team Collaboration
Product Design
Prototype Fabrication
9/8/2023 - 12/31/2023
Solidworks
Rhino
Keyshot
3D print
Solidworks
Rhino
Keyshot
3D print

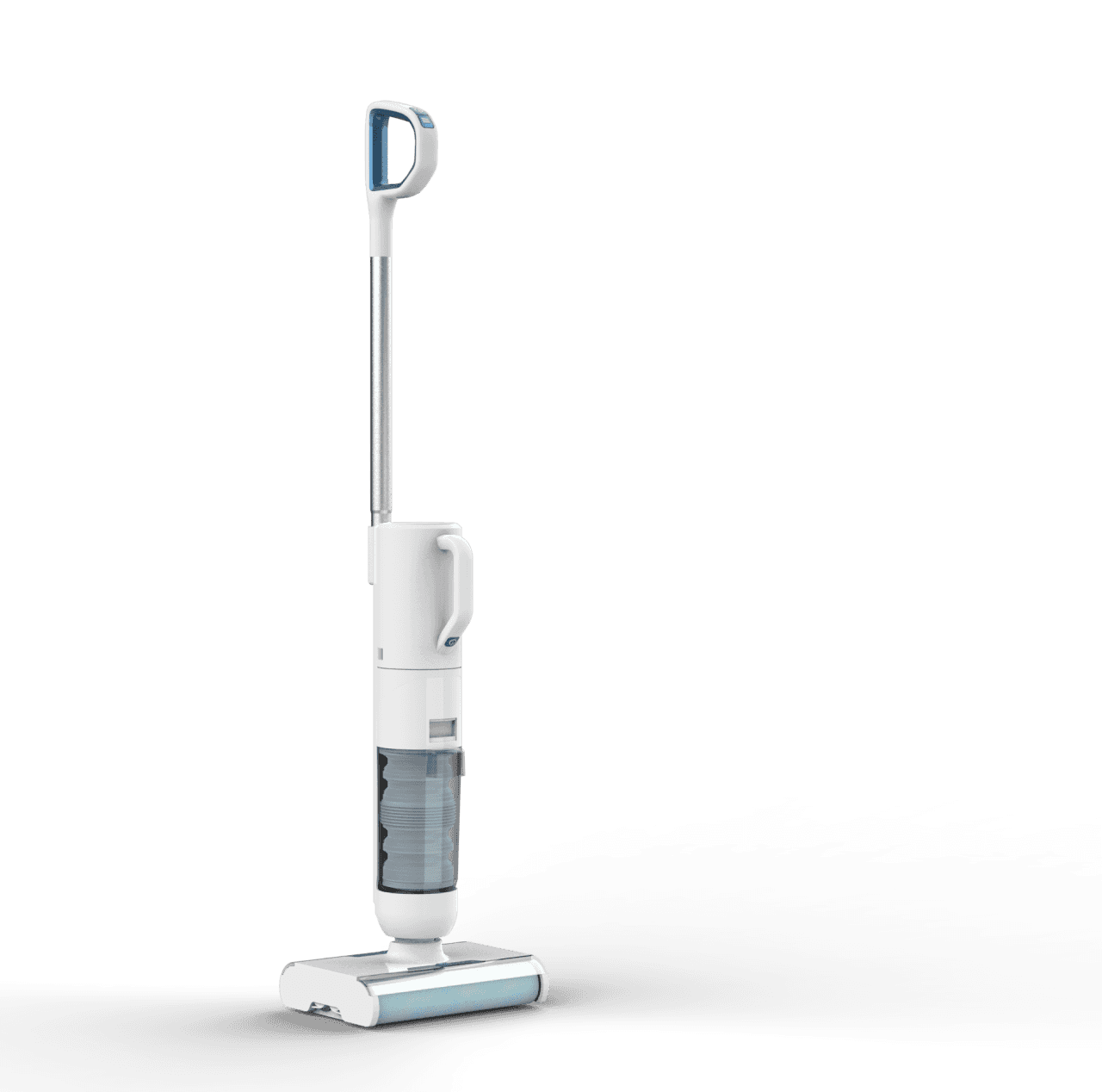

Larger tank volume and Smaller body size

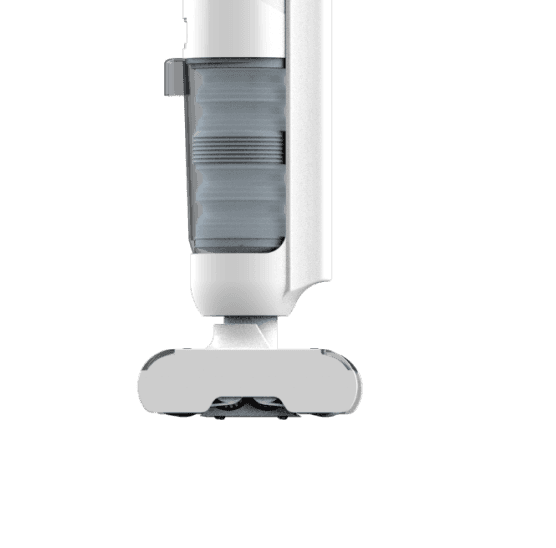

This plate can slide on the wall of the outside plastic tank
The Design

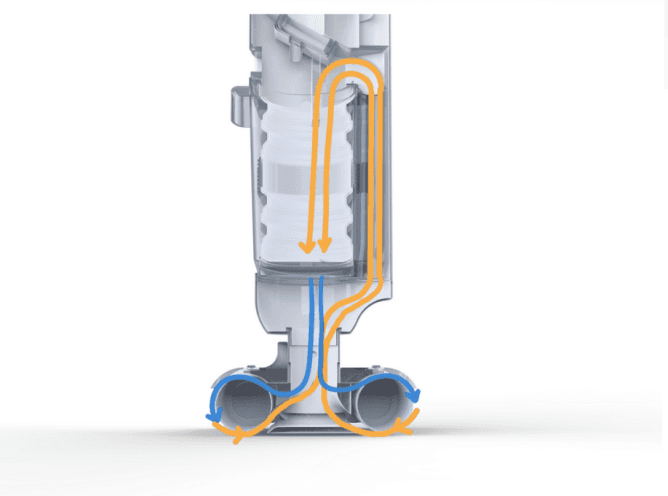

How does it work
Design Goals
Our goal is to achieve the same water storage capacity as existing products while reducing the overall product volume. This aims to make it possible to clean more challenging and hard-to-reach corners of the house that are typically difficult to clean during regular cleaning activities.

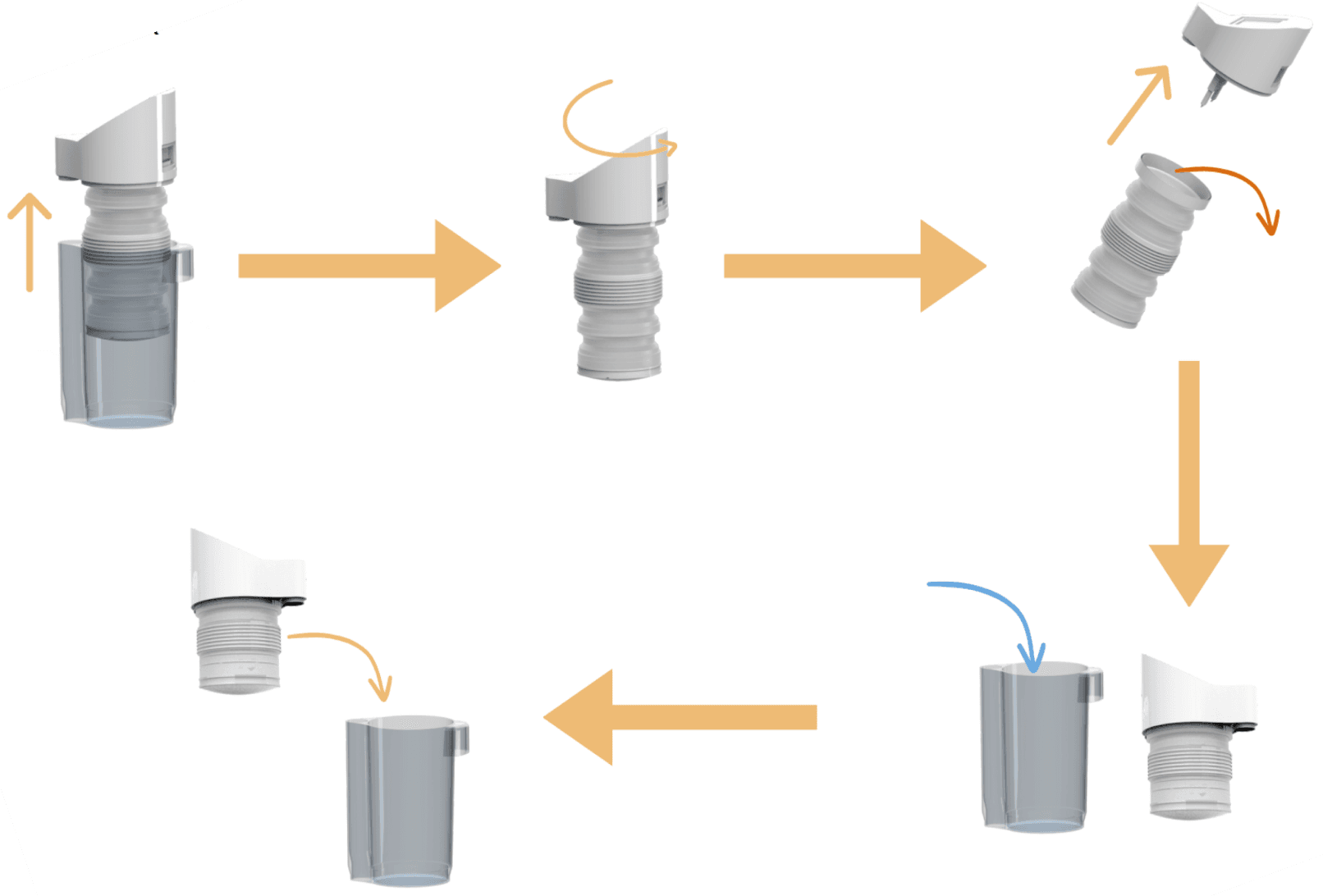

Open the combination tank and take out the silicone flexible sewage tank.
Twist open the sewage tank lid.
Pour out the wastewater.
Close the sewage tank lid and add clean water to the fresh water tank.

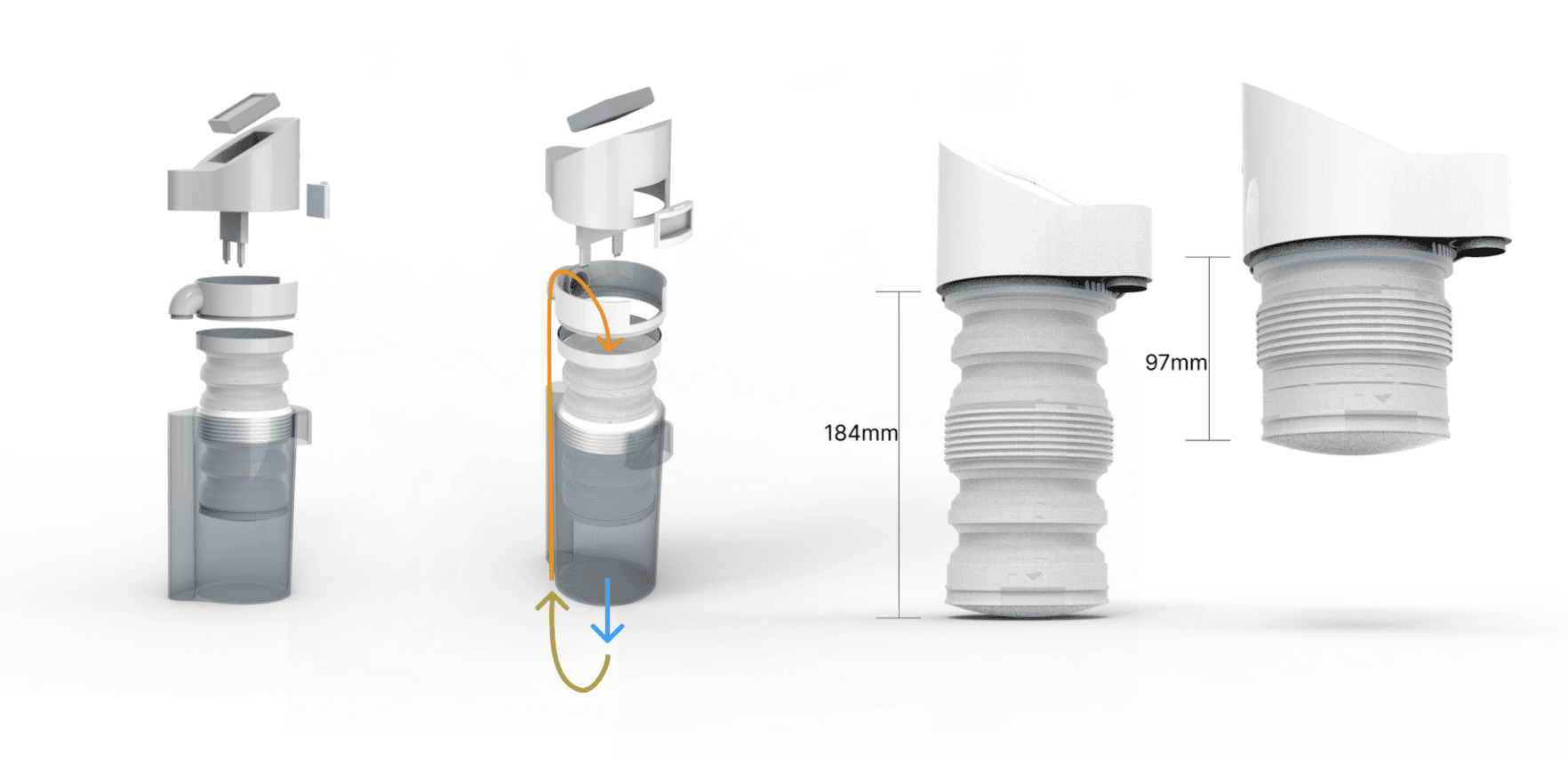

A novel design is proposed, combining the "clean water tank" and "sewage tank" into one unit, resulting in a substantial reduction in the overall machine size.
sewage tank
Clean water tank
Full sewage
Empty sewage
One water tank
+
Place the lid of the combination tank onto the fresh water tank.
Dirty water
Clean water

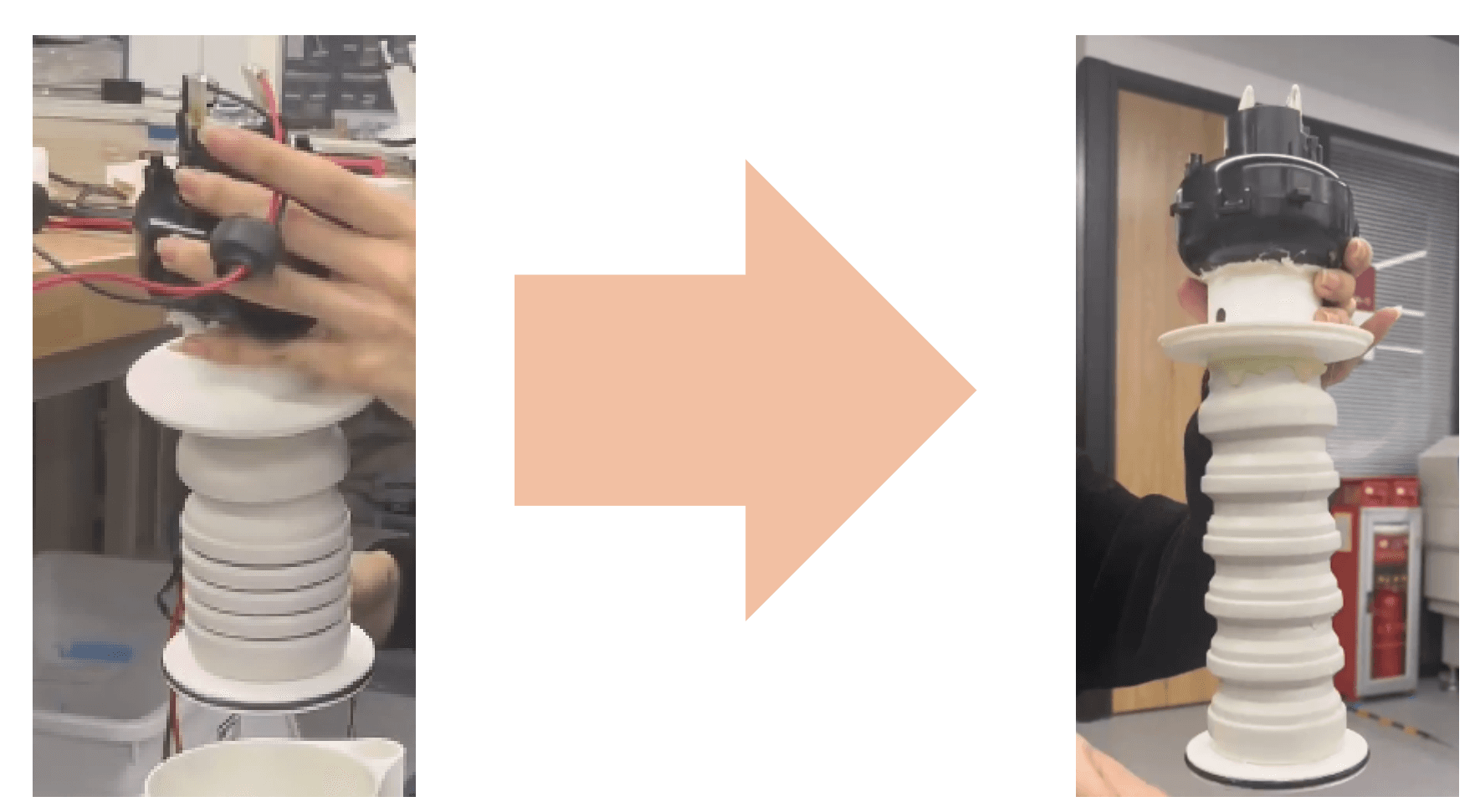

Functional prototype demonstration
While in use, any spilled clean water will be drawn into the silicone flexible sewage tank. We conducted tests using a motor from an existing product, and observed that the suction could expand the silicone flexible sewage tank. Therefore, our design is proven to be functional.
Larger tank volume and Smaller body size
14cm
1120mm
200mm
280mm
Dirty water tank volume: 801.171ml
Clean water tank volume: 856.658ml
Our product

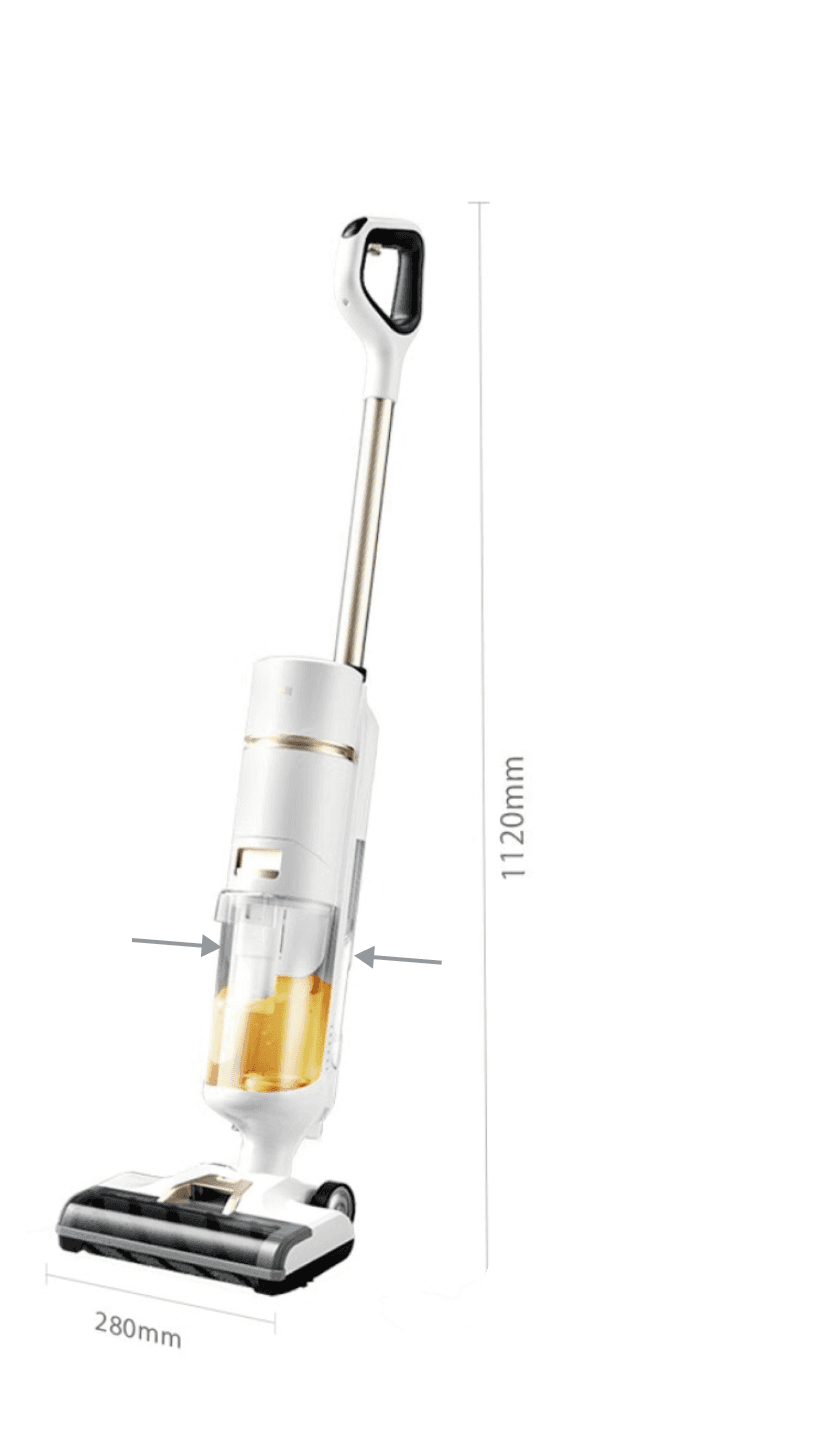

UONI Future F1
Dirty water tank volume: 600ml
Clean water tank volume: 450ml
16.5cm
This plate can slide on the wall of the outside plastic tank
The Design
How does it work
How To empty dirty water and add clean water
Design Goals
Our goal is to achieve the same water storage capacity as existing products while reducing the overall product volume. This aims to make it possible to clean more challenging and hard-to-reach corners of the house that are typically difficult to clean during regular cleaning activities.
Open the combination tank and take out the silicone flexible sewage tank.
Open the combination tank and take out the silicone flexible sewage tank.
Twist open the sewage tank lid.
Twist open the sewage tank lid.
Pour out the wastewater.
Pour out the wastewater.
Close the sewage tank lid and add clean water to the fresh water tank.
Close the sewage tank lid and add clean water to the fresh water tank.
A novel design is proposed, combining the "clean water tank" and "sewage tank" into one unit, resulting in a substantial reduction in the overall machine size.
sewage tank
Clean water tank
Full sewage
Empty sewage
One water tank
+
Place the lid of the combination tank onto the fresh water tank.
Place the lid of the combination tank onto the fresh water tank.
Dirty water
Clean water
Functional prototype demonstration
While in use, any spilled clean water will be drawn into the silicone flexible sewage tank. We conducted tests using a motor from an existing product, and observed that the suction could expand the silicone flexible sewage tank. Therefore, our design is proven to be functional.
Larger tank volume and Smaller body size
14cm
1120mm
200mm
280mm
Dirty water tank volume: 801.171ml
Clean water tank volume: 856.658ml
Our product
16.5cm
UONI Future F1
Dirty water tank volume: 600ml
Clean water tank volume: 450ml
